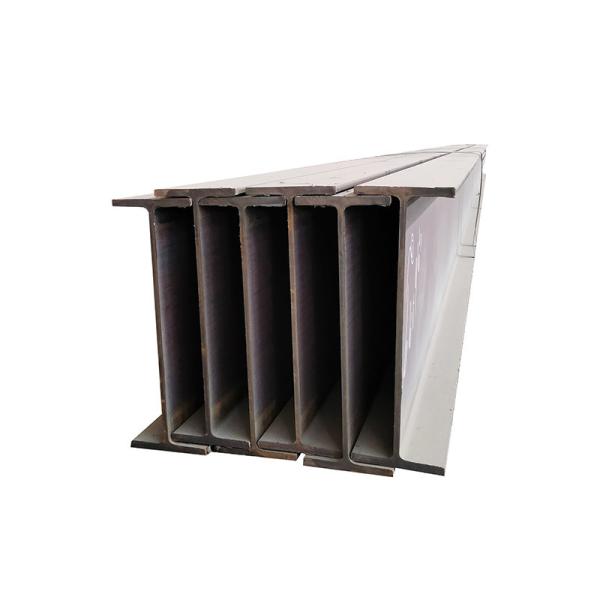

H Beam Iron 75*75mm Curved Steel Beam Universal Beams

H Beam

H-beam is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named after its section is the same as the English letter "H". Since all parts of H-beam are arranged at right angles, H-beam has the advantages of strong bending resistance, simple construction, cost saving and light weight in all directions, and has been widely used.

An economical cross-section profile with a cross-sectional shape similar to the capital Latin letter H, also called universal steel beam, wide-edge (side) I-beam or parallel-flange I-beam. The cross section of H-beam usually includes two parts: web and flange, also called waist and edge.

The inner and outer sides of the H-shaped steel flange are parallel or close to parallel, and the flange ends are at right angles, hence the name Parallel Flange I-beam. The thickness of the web of the H-beam is smaller than that of the ordinary I-beam with the same height of the web, and the flange width is larger than that of the ordinary I-beam with the same height of the web, so it is also called the wide-edge I-beam. Determined by the shape, the section modulus, moment of inertia and corresponding strength of H-beams are significantly better than ordinary I-beams of the same single weight. Used in metal structures with different requirements, whether it bears bending moment, pressure load, or eccentric load, it shows its superior performance. Compared with ordinary I-beam, it can greatly improve the load-bearing capacity and save metal by 10%-40%. H-shaped steel has wide flanges, thin webs, multiple specifications, and flexible use. It can save 15% to 20% of metal when used in various truss structures. Because the flanges are parallel inside and outside, and the edges are at right angles, it is easy to assemble and assemble various components, which can save about 25% of the welding and riveting workload, which can greatly accelerate the construction speed of the project and shorten the construction period.

Due to the above advantages, H-beams are widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activity and high temperature working conditions; requirements Large-scale bridges with large bearing capacity, good section stability and large spans; heavy equipment; highways; ship skeletons; mine support; foundation treatment and embankment engineering; various machine components.

Internationally, the product standards of H-beams are divided into two major categories: the imperial system and the metric system. The United States, Britain and other countries adopt the imperial system, while China, Japan, Germany and Russia adopt the metric system. Although the units of measurement used in the imperial system and the metric system are different, most H-beams use four sizes to indicate their specifications, namely: web height h. Flange width b, web thickness d and flange thickness t. Although countries around the world have different ways of expressing H-beam size specifications. However, the product size specification range and dimensional tolerances of the products produced are not much different.

We are the exporters, stockiest & suppliers of Stainless Steel , Carbon steel and Nickel Alloy sheets, Strips, Foil, Coil, Shims from China. Shandong Fulilai Steel Group takes immense pleasure in introducing itself as one of the leading names in the Engineering Industry having Integrated Steel Complex with modern integration to produce Strips, Coil, Sheet, Foil. we have experience in this field for many years.Our products comply with Chinese GB. American ASTM. Japanese JlS and other standards, and have obtained 1S09001 and 1S09002 certifications. All products shipped have SGS report and material certification of ROHS directive.

Over a decade of progress have consistently made us realize that more than products, it is understanding the client's requirement and giving maximum services to the customer is what makes us stand apart from others. We have a self contained unit with forming, Forging, Welding, Machining,Heat treatment, and Facilities for physical & Chemical testing, This enables us to meet strict requirements of manufacturing and testing codes.

We have served our prestigious clients by supplying from spare parts to whole Projects. With our Commitment towards quality & timely delivery on regular basis at the most reasonable prices, we have developed long term business relations with our customers. We have built up adequate stock levels of all essential items within our scope of supply and are in a position to offer immediate deliveries. The quality of our products is engineered by ourselves & has been hailed & vouched by numerous companies & MNC’s across the world. Our Research & Development Team keeps on proposing necessary changes as we are in constant touch with various successful clients in the world.
