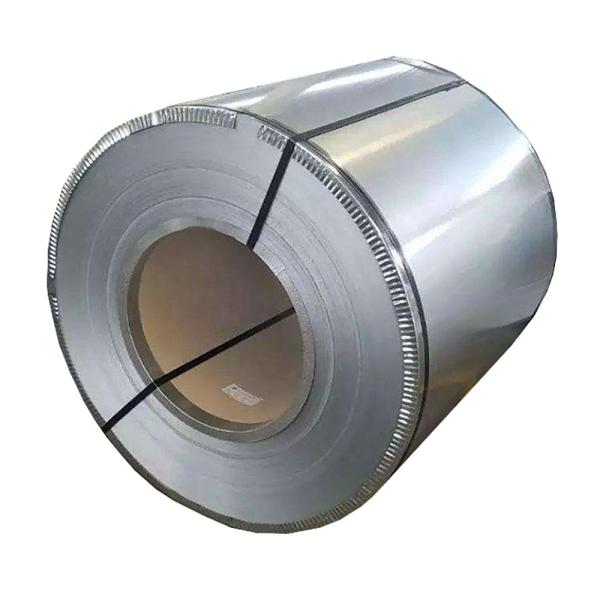

CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet

    Buy cheap CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet from wholesalers

    Buy cheap CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet from wholesalers
    • Buy cheap CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet from wholesalers
    • Buy cheap CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet from wholesalers
    • Buy cheap CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet from wholesalers
    • Buy cheap CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet from wholesalers

    CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet

    Ask Lasest Price
    Brand Name : Fulilai
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 100000 Tons per Month
    Delivery Time : 15-21days
    MOQ : 1 tons
    • Product Details
    • Company Profile

    CR SPCC SGCC Galvanized Steel Coil Sheet DX51D GI Zinc Coated Steel Sheet

    CR SPCC SGCC DX51D GI zinc coated steel cold rolled/hot dipped galvanized steel coil/sheet/plate/strip

    Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet.


    Shandong Fulilai Steel Group is a leading supplier of galvanized steel sheet & coil. Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. There are two main processes used to produce galvanized steel: continuous hot dipping and electro-galvanizing.
    The hot dipping process consists of passing the steel through a bath of molten zinc, while the electro-galvanizing process consists of the application of zinc through electrolytic disposition. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.
    A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.

    Specification of GI Sheet&Coils&Plate

    Product Name
    Galvanized Steel Coil,Galvanised Steel Coil,Zinc Coated Steel Coil,GI,HDGI
    Galvalume Steel Coil,Aluzinc Steel Coil,Zinc Aluminum Steel Coil,GL,HDGL
    Standard
    EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
    Steel Grade
    Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,
    S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement
    Type
    Coil/Sheet/Plate/Strip
    Material
    CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
    Thickness
    0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
    Width
    600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
    Zinc Coating
    Z30g/m2-Z350g/m2
    Surface Structure
    Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
    Coil Weight
    3 Tons -8Tons
    Coil ID
    508mm/610mm

    Type of surface

    After the hot-dip galvanized steel sheet is pulled out of the zinc pot, the appearance of the crystal grains formed as the zinc layer cools and solidifies is called spangles. The size, brightness and surface morphology of spangles depend on a series of factors, but they are mainly related to the composition of the zinc layer and the cooling method.Galvanized steel coil has the advantages of uniform coating, strong adhesion and long service life.


    Applications of GI Sheet&Coils&Plate

    Fulilai's galvanized steel, hot dipped galvanized steel coil and galvanized steel sheet have a wide variety of uses across numerous industries:

    • Exterior building products
    • Ductwork
    • HVAC products
    • Flashing
    • Electrical boxes and other electrical products
    • Roofing
    • Doors
    • Garage doors
    • Sashes
    • Safety fencing
    • Automotive parts
    • Appliances
    • Commercial and residential steel framing
    • Parking lots
    • Truss plates
    • Metal building purlins
