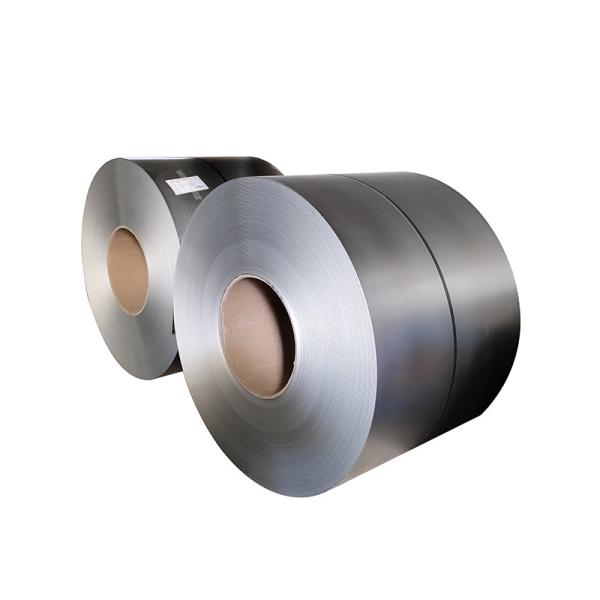

    DX51D Z100 Galvanized Steel Strip Coil 300 Series Grade BA 2B Surface

    Ask Lasest Price
    Brand Name : Fulilai
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 100000 Tons per Month
    Delivery Time : 15-21days
    MOQ : 5 tons
    • Product Details
    • Company Profile

    DX51D Z100 Galvanized Steel Strip Coil 300 Series Grade BA 2B Surface

    Steel Galvanized Coils DX51D Z100 Galvanized Steel Strips Coil

    Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet.

    ASTM A240 TP304 GI Coils, ASME SA 240 GI 304 Coils, Austenitic GI Steel 304 Coils at Best Price, GI Steel 304 Hot Rolled Coils, GI 304 Bright Annealed Coils, BA Finish GI Steel 304 Coils, GI Steel 304 Jindal Make Coils, GI 304 Industrial Strips & Coils, 2B Finish GI 304 Coil, GI 304 Precision Slit Coils Dealer, 304 GI Steel CR Coils, GI 304 Wide Coils Exporter in China, Galvanized 304 Steel Sheet, Galvanized 304 Steel Coils.


    Shandong Fulilai Steel Group is a leading supplier of galvanized steel sheet & coil. Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. There are two main processes used to produce galvanized steel: continuous hot dipping and electro-galvanizing.
    The hot dipping process consists of passing the steel through a bath of molten zinc, while the electro-galvanizing process consists of the application of zinc through electrolytic disposition. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.
    A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.

    Specification of GI Sheet&Coils&Plate

    Product Name
    Galvanized Steel Coil,Galvanised Steel Coil,Zinc Coated Steel Coil,GI,HDGI
    Galvalume Steel Coil,Aluzinc Steel Coil,Zinc Aluminum Steel Coil,GL,HDGL
    Standard
    EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
    Steel Grade
    Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,
    S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement
    Type
    Coil/Sheet/Plate/Strip
    Material
    CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
    Thickness
    0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
    Width
    600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
    Zinc Coating
    Z30g/m2-Z350g/m2
    Surface Structure
    Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
    Coil Weight
    3 Tons -8Tons
    Coil ID
    508mm/610mm

    STEEL GRADECHEMICAL COMPOSITION %MECHANIC PROPERTYC.B OFCOATING
    CSiMnSPT.SY.SE.LCOATING
    x103x103x102x103x103MpaMpa%d=0 180°G/M²
    JIS G3302 SGCC123041312148030013OKZ60-150
    JIS G3302 SGCH12102118868065020OKZ60-150
    ASTM A653 CS.B2930603530386250-38020OKZ60-275
    DX51D+Z2021181.81135524538OKZ60-275
    G550126735177156548OKZ60-275

    Packing&Shipping


    Packing:3 layers of packing, inside is kraft paper, water plastic film is the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.



    Loading Port: Tianjin/Qingdao/Shanghai Port.


    Applications of GI Sheet&Coils&Plate

    Construction industry: roof sheet/panel, roof components,balcony window,newsstands,warehouse,rolling door,heaters,drainage etc.


    Household application: refrigerators,washing machines,switch cabinet,air conditioning,microwave oven,bread machine etc.


    Furniture industry: lampshade,wardobe,desk,bookcase,counter,medical equipment etc.


    Transportation industry: cars,cars shell,tractor,container ship,shipbuilding.highway fence,ships bulkhead etc.
